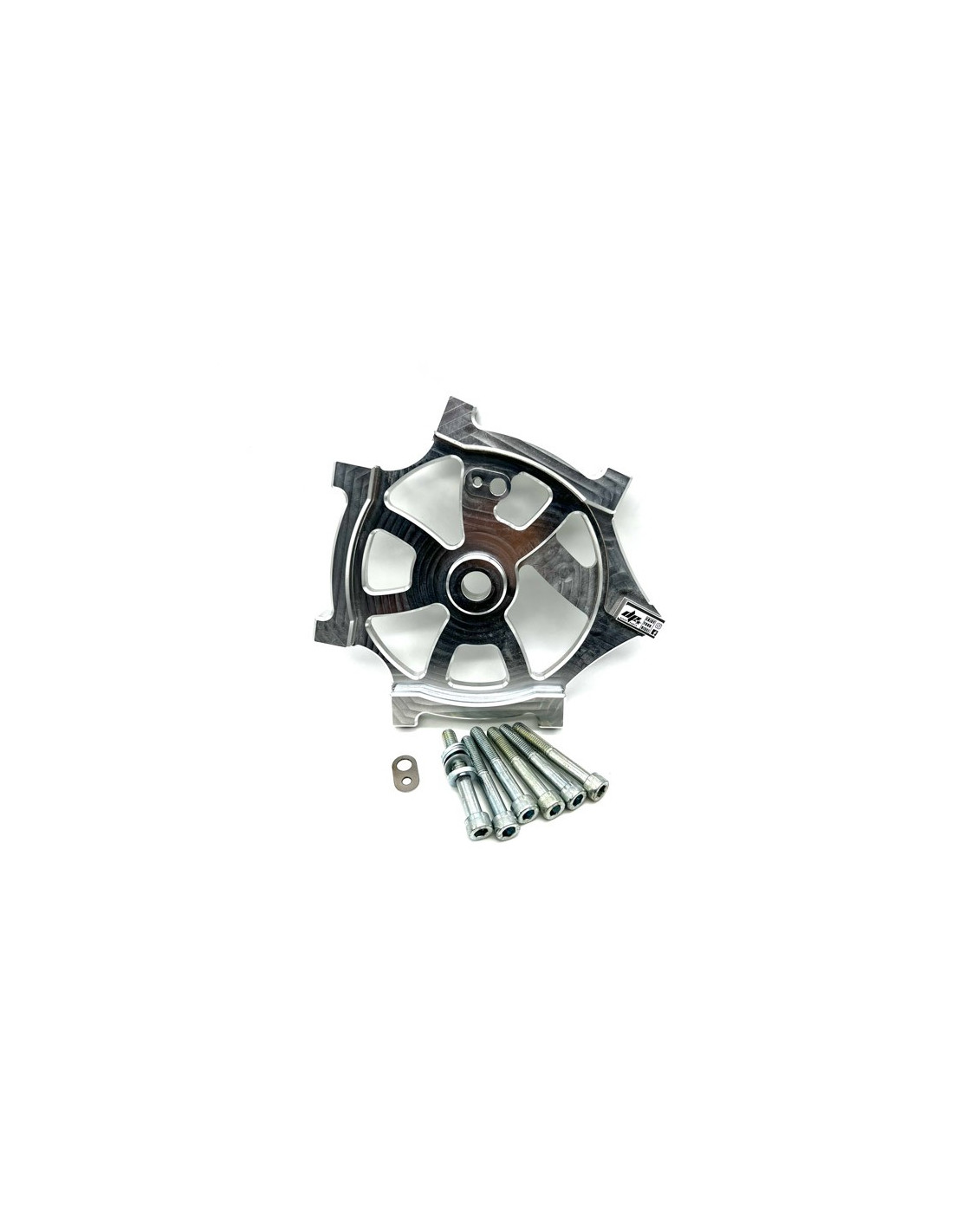

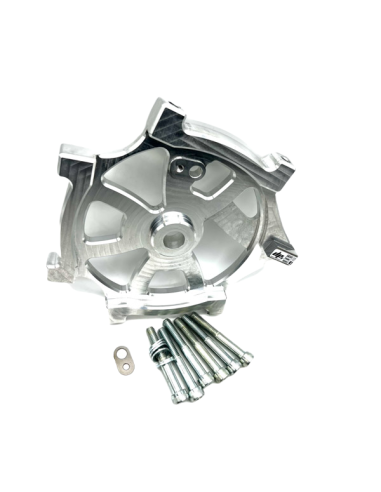

Handbrake Bracket for Triumph Street Triple 675 765 ABS Stunt 3R

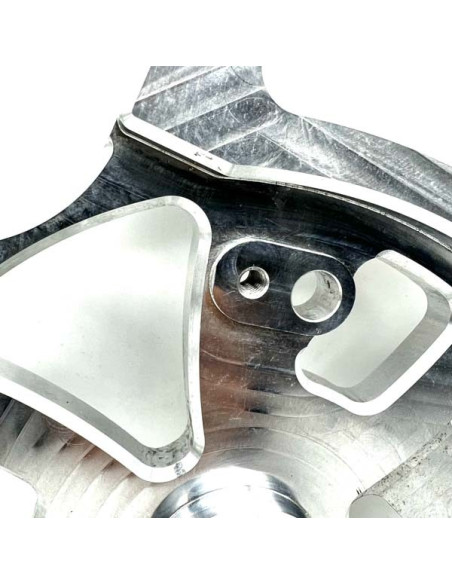

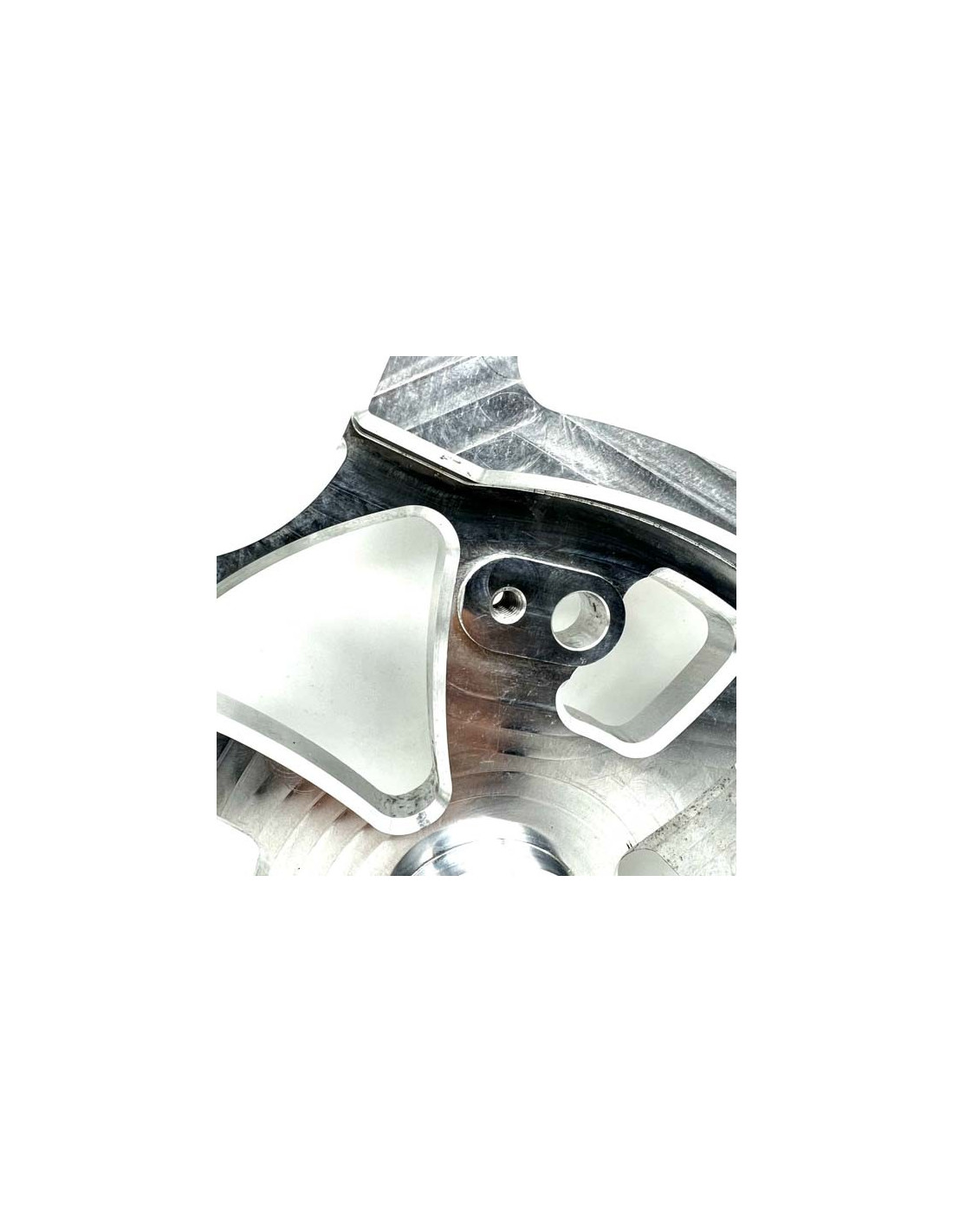

Handbrake caliper bracket.

Material: Aluminium alloy 7075 T6
Number of calipers: 3x radial brake caliper (bolt spacing: 108mm)
Brake disc diameter: 300mm
ABS bracket: YES

Brackets are made for a 300 mm floating brake disc mounted directly on the rim (without adapters).
The use of spacers with appropriate calipers is given below.

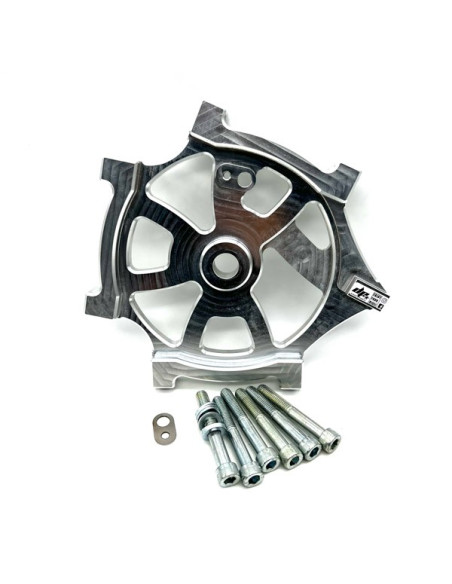

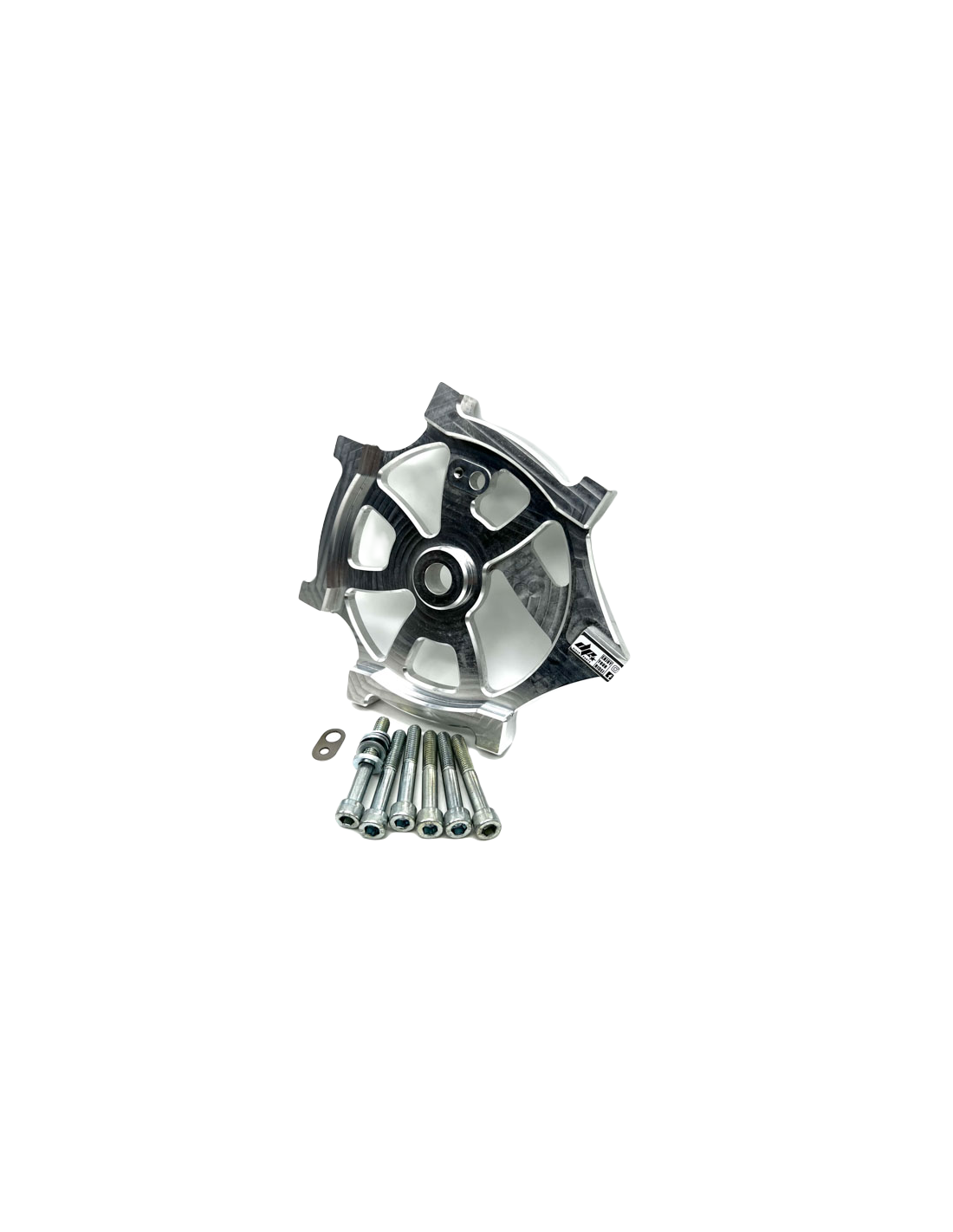

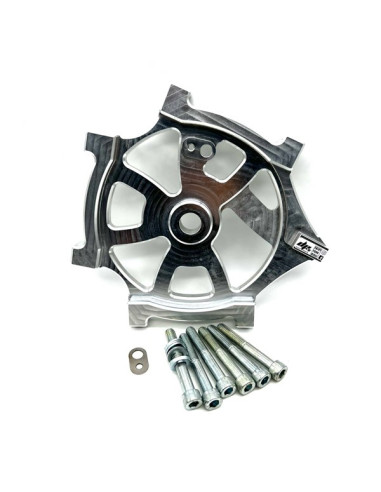

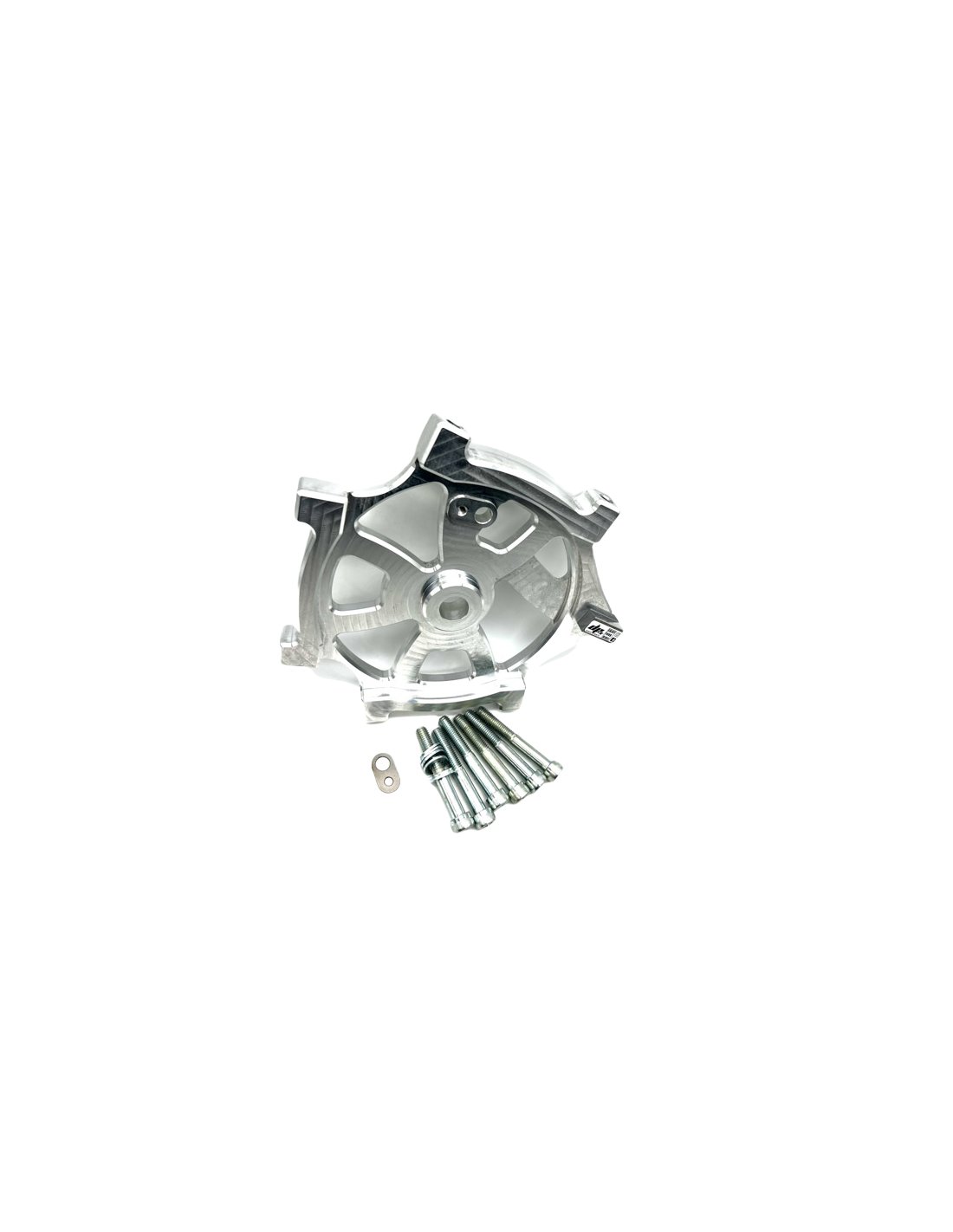

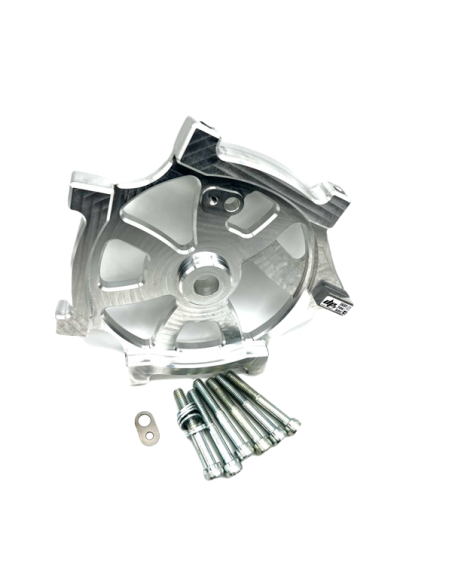

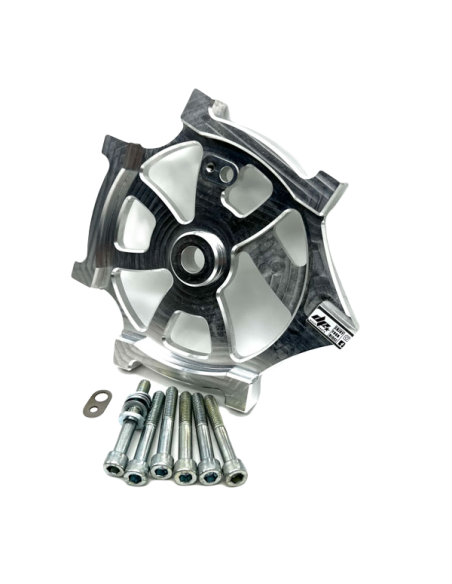

Set includes:
1. Handbrake bracket
2. Caliper mounting bolts

Will fit the following models (without additional distances):
Suzuki GSX-R 2006-2011 (K6, K7, K8, K9, L0, L10)
Yamaha R6 (2007-2014) and R1 RN12 (2004-2006)
Suzuki VZR 1800 Intruder (2006-2015)

• using a 9mm spacer it is possible to mount the calipers from:
Suzuki GSX-R 2004-2005 (K4, K5)
Kawasaki GTR 1400 (2008-2014)
Kawasaki Z1000 (2007-2009)
Kawasaki Z750 (2011-2012)
Kawasaki ZZR 1400 (2006-2014)
Kawasaki ZX6-R 636 (2003 - 2014)

• using a 16mm spacer it is possible to mount the calipers from:
Honda CBR 600RR PC37 PC40 (2004-2009)
Honda CBR 1000RR PC57 (2004-2007)

The price does not include calipers, spacers or brake disc - all parts are available in our shop.
