Adapter 01 for universal handbrake brackets
.
Adapter prepared for mounting Japanese radial calipers with 108 mm bolt spacing (Nissin, Tokico).
It is the most frequently purchased adapter because it can be fitted with more than 10 different clamps from many motorcycles.
Material: Powder coated steel
Number of calipers: 1 x radial caliper (screw spacing 108 mm)
Rotor diameter: 300 mm (mounted directly to the rim)
The kit includes:

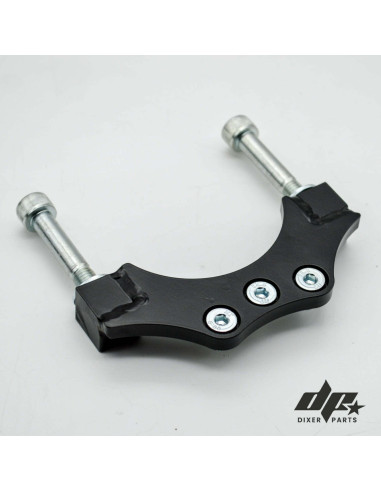

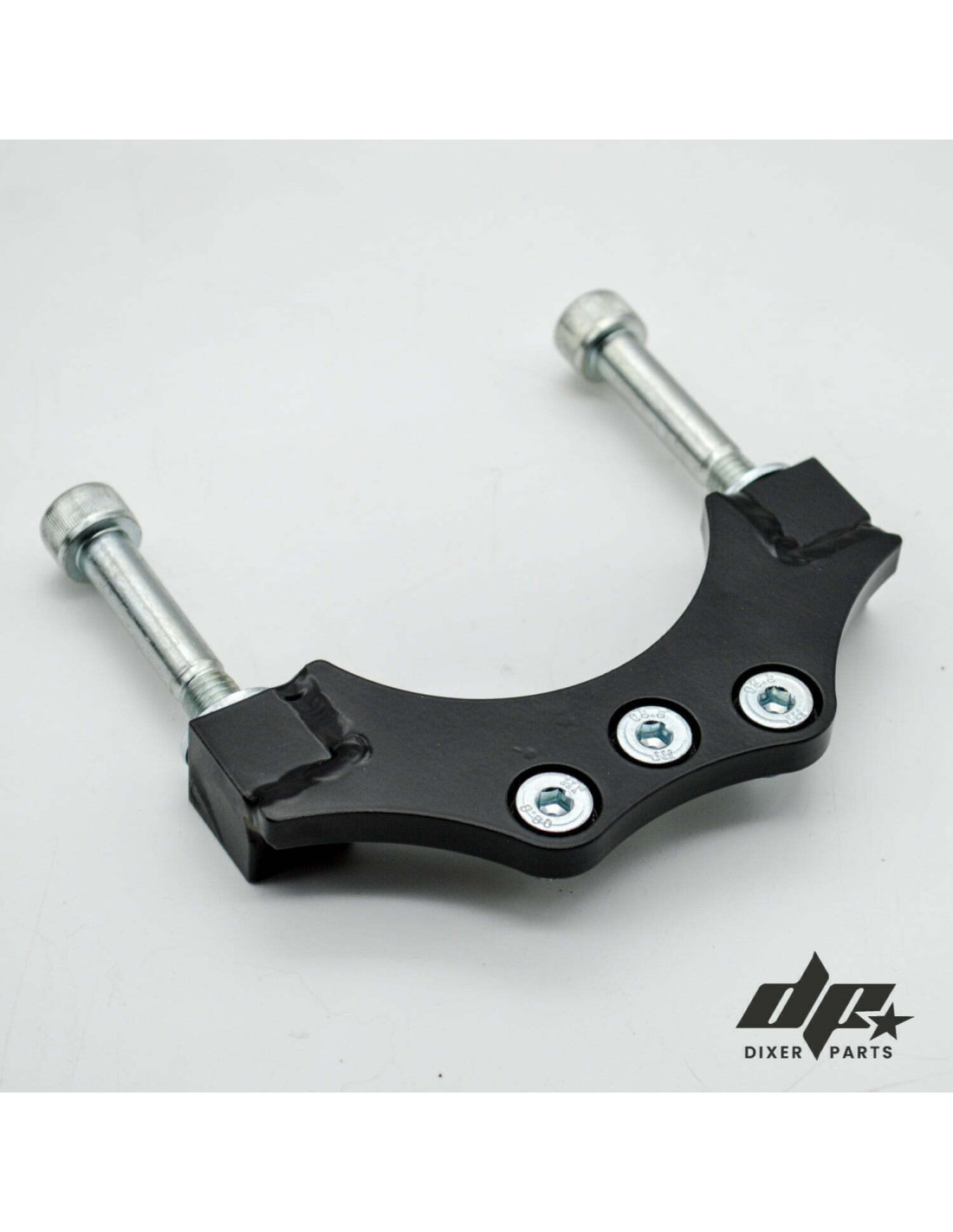

1. Clamp adapter (visible in the first photo)
2. Clamp fixing screws and main mount adapter

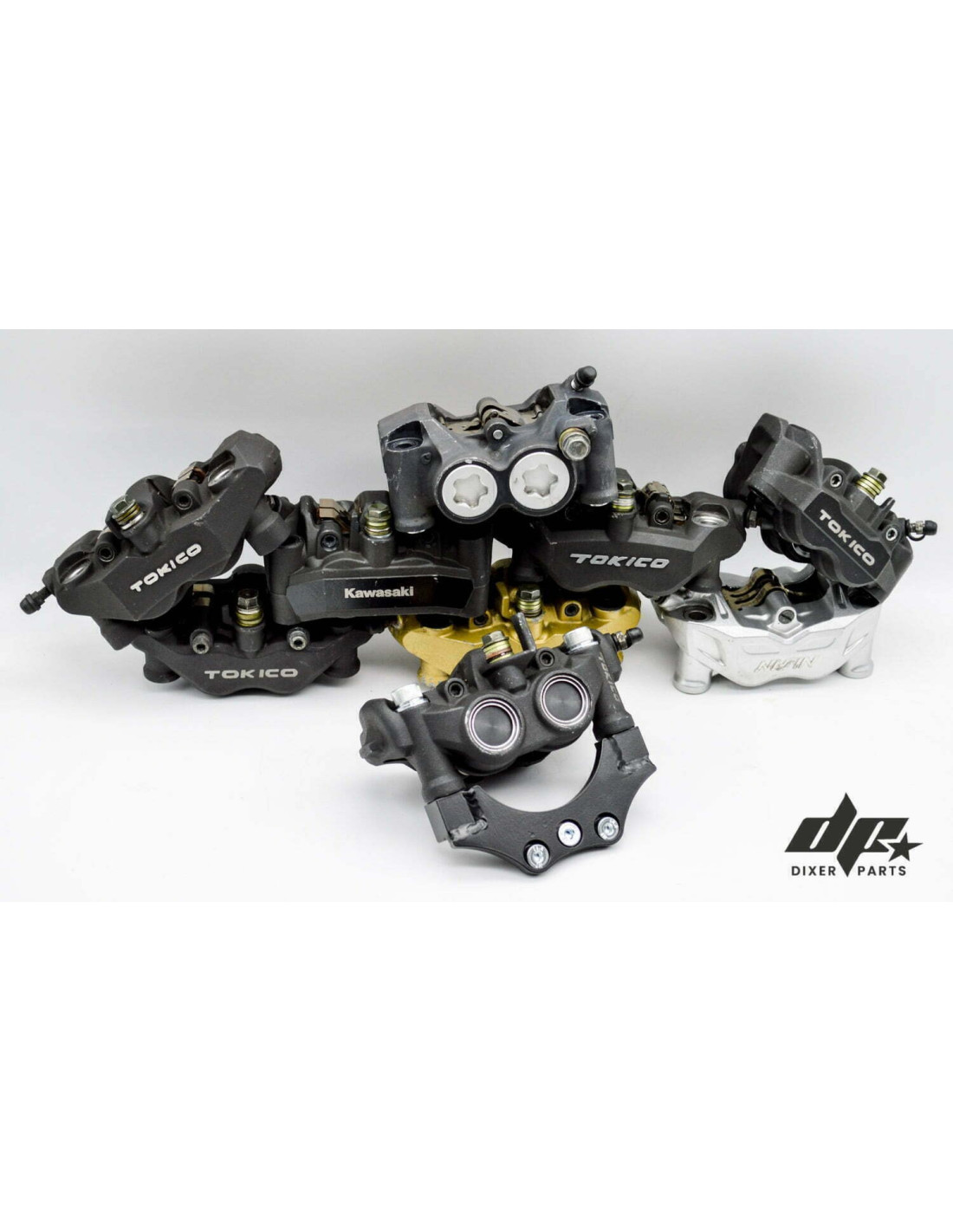

Possibility to install clamps (without additional spacers):
Suzuki GSX-R 2006-2011 (K6, K7, K8, K9, L0, L10)
Yamaha R6 (2007-2014) and R1 RN12 (2004-2006)
Suzuki VZR 1800 Intruder (2006-2015)
• using a distance of -9 mm- it is possible to install clamps with:
Suzuki GSX-R 2004-2005 (K4, K5)
Kawasaki GTR 1400 (2008-2014)
Kawasaki Z1000 (2007-2009)
Kawasaki Z750 (2011-2012)
Kawasaki ZZR 1400 (2006-2014)
Kawasaki ZX6-R 636 (2003 - 2014)
• using a distance of -16 mm- it is possible to install clamps with:
Honda CBR 600RR PC37 PC40 (2004-2009)
Honda CBR 1000RR PC57 (2004-2007)
The price does not include clamps, spacers, rotor the main bracket- available for purchase in our store.
